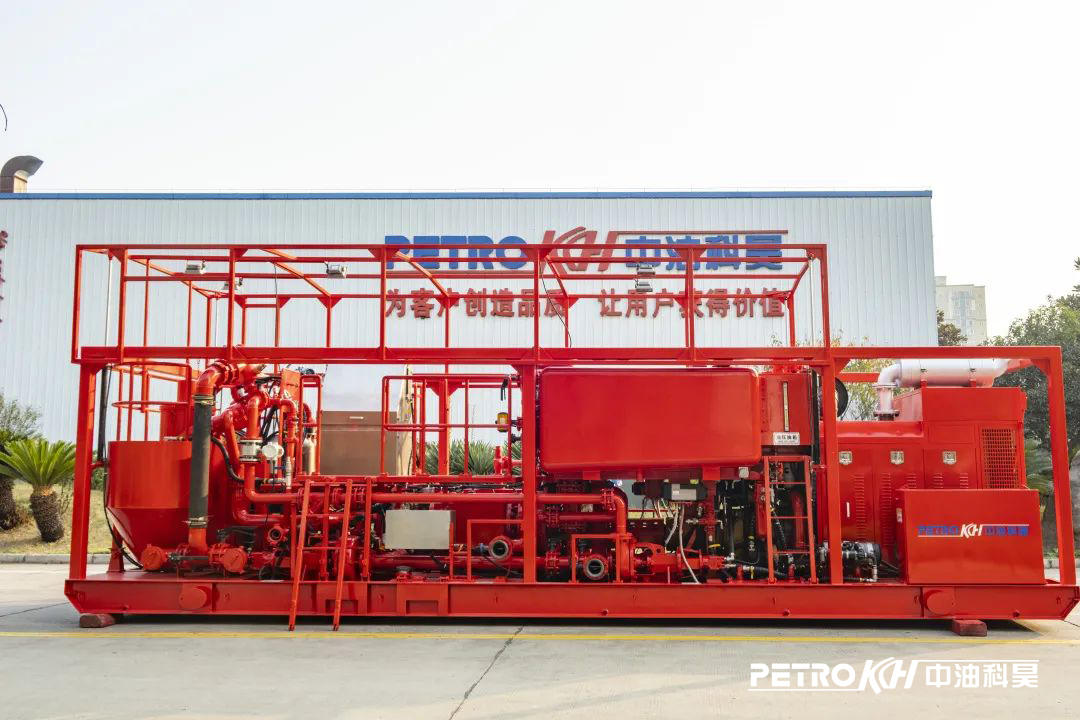

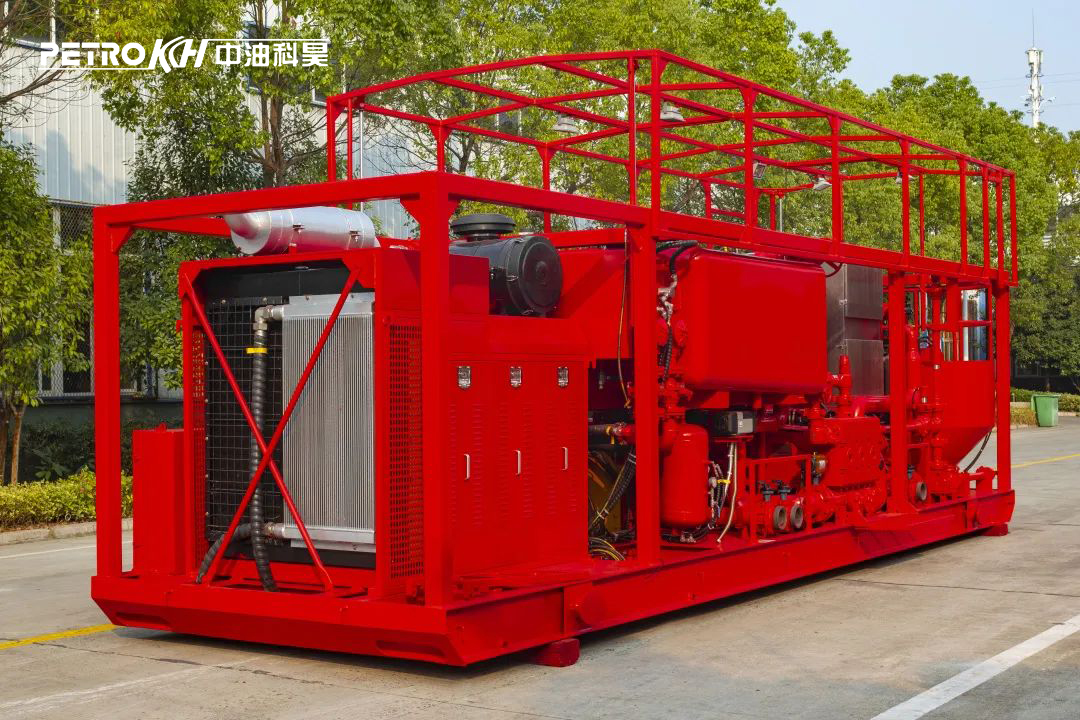

PETROKH cementing equipment is designed to meet the needs of various operation areas and adapt to harsh environments such as extreme cold and extreme heat. Equipped with a professional data acquisition system, it offers customizable manual or automatic operation modes to enhance operational efficiency and provide a new operational experience. The entire machine is safe, reliable, and increases product satisfaction.
1. All-Weather Oilfield Cementing Equipment: Suitable for different operating areas such as land, sea, and desert, and can adapt to extreme cold and heat conditions.
2. Professional Data Acquisition System: Provides real-time recording, analysis, and storage of cementing truck operation data.
3. User-Friendly Operation Interface: The operation interface and function keys are designed to suit oilfield operational habits, making data input simple, easy to learn, and understand.
4. Ash Adjusting Valve: Features a gate plate with an eccentric spool structure for adjustment to prevent gray material from getting stuck. The valve opening follows a linear adjustment pattern and can be quickly and accurately adjusted by a precise hydraulic cylinder control.
Model |
GJC(Q)40-17 |
GJC(Q)45-21 |
GJC/Q70-13 |
GJC(Q)70-33 |
Type |
Truck-mounted/trailer-mounted/skid-mounted |
|||
Chassis |
Beiben/BENZ/MAN |
|||
Engine |
Cummins/DDC60/CAT/CUMMINS |
|||
Transmission |
Winstar BY400/ALLISON 4700SOFS |
|||
Plunger pump |
KTZ300 |
KTZ600 |
KTZ600 |
KTZ600 (2 sets) |
Plunger Diameter |
5" |
4.5" |
3.5" |
3.5"+4.5" |
Maximum Working Pressure |
40MPa |
43.4Mpa |
70Mpa |
70Mpa |
Maximum working flow rate |
1641m3/min |
2.1m3/min |
1274m3/min |
3300m3/min |
Centrifugal pump |
Spray/water supply 4×3×3 circulation, filling 6×5×11 |
|||
Metering tank |
2×10 bbl(2×2 m3) |
|||
Mixing tank |
1.6 m3 |
|||
Mixing density range |
8.3~22 ppg(1~2.6 g/cm3) |
|||
Maximum mixing capacity |
14.5 bpm(2.3 m3/min) |
