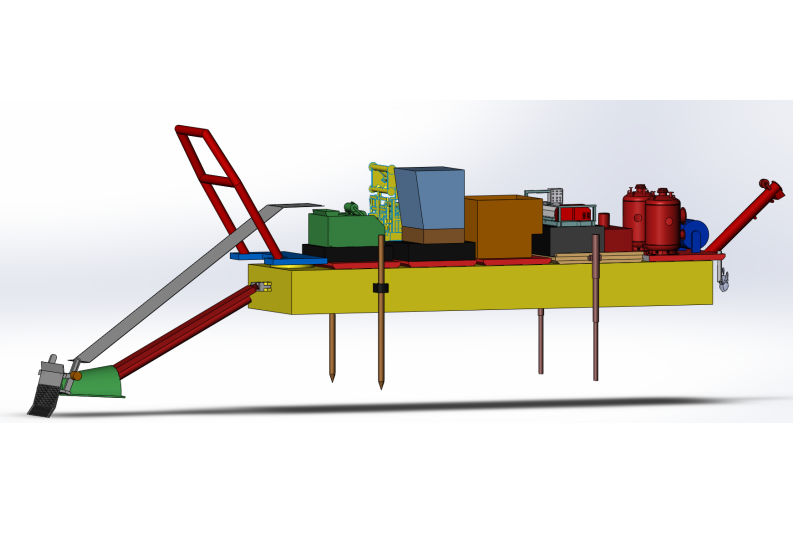

River dredging equipment
The river dredging equipment integrates sludge removal, sludge treatment, and water treatment functions into a single unit. All operations are performed on water, which effectively reduces land usage. While cleaning the river, the equipment also provides water purification through its onboard system.
Product Features
High Reliability: The sludge dewatering and purification separation system offers high reliability with thorough solid-liquid separation. The treated water can be directly discharged back into the river, achieving water purification.
Modular Design: The equipment is modularly assembled, making it easy to transport.
Hydraulic System: It uses a complete hydraulic drive system, with the motor powering the hydraulic pump station.
High Automation: The system is highly automated, typically configured for 4 operators.
Modular Design: The equipment is modularly assembled, making it easy to transport.
Hydraulic System: It uses a complete hydraulic drive system, with the motor powering the hydraulic pump station.
High Automation: The system is highly automated, typically configured for 4 operators.
Product Parameters
Processing Capacity: 100 m³/h
Maximum Dredging Depth: 5-10 m
Design Draft Depth: 1 m
Operating Environment: Sheltered sea areas and inland river dredging operations
Separation Particle Sizes:
Vibrating Screen: 0.4-1 mm
Sludge Remover: 10-60 μm
Dehydrator: 25 μm
Centrifuge Mechanical Separation: 2-5 μm
